Piher® Maxipress F Clamp

Price range: $68.99 through $95.99

P60020: MAXI F 20 cm /8″ Capacity – 4.75″ Jaw, 2,025 lb.
P60030: MAXI F 30 cm /12″ Capacity – 4.75″ Jaw, 2,025 lb.
P60040: MAXI F 40 cm /16″ Capacity – 4.75″ Jaw, 2,025 lb.
P60050: MAXI F 50 cm /20″ Capacity – 4.75″ Jaw, 2,025 lb.
P60060: MAXI F 60 cm /24″ Capacity – 4.75″ Jaw, 2,025 lb.

Piher® Maxipress F Clamp
Up to 2,025 lbs clamping force with zero distortion. The double-threaded piston doubles your torque with half the effort. Curved jaws with “+” grooves grip pipes and edges securely. Built in Europe with cast iron jaws, hardened steel bar, anti-rust finish, and backed by a lifetime warranty.

Key Features

Piher® Maxipress F Clamp

Genuine Piher® Maxipress F Clamp is designed and manufactured in Europe to be the finest slide clamp in the world. It has a maximum clamping pressure of 2,025 pounds and will not distort like competitive clamps.

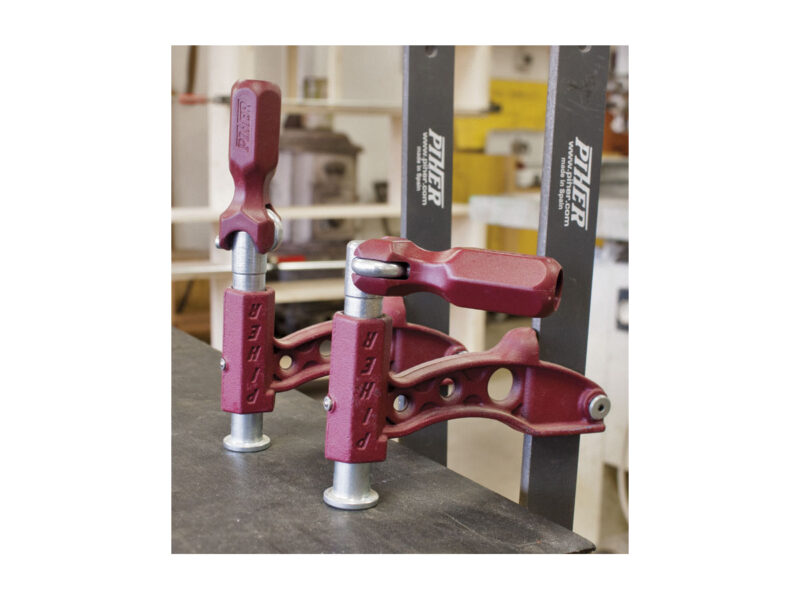

The unique double-threaded “piston” design gives you two full thread turns for every one turn of the adjusting handle, which reduces operator fatigue and increases torque. The fully enclosed adjustment mechanism means your threads are always protected from physical damage, debris and weld spatter.

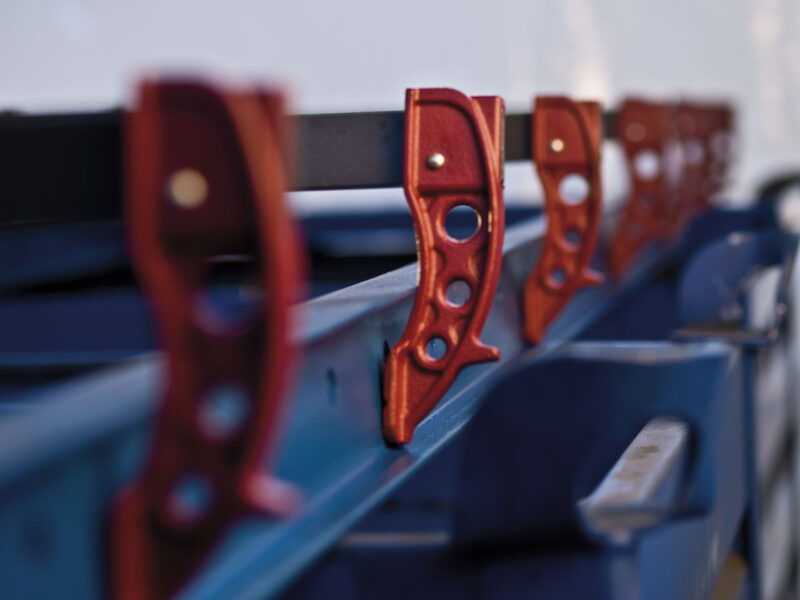

The jaws of the Maxipress F clamp are made from heavy duty, epoxy-coated cast iron. Their curved shape allows you to work around edges and protrusions. The upper fixed jaw features “+” grooves for gripping pipe and other unusual surfaces. Positioning system and non-slip brake on the moving jaw prevents slippage. Hot rolled steel slide bar has unmatched strength and features anti-rust coating to provide long life.

The Piher Maxipress F clamp comes complete with a limited lifetime warranty.



P60020: MAXI F 20 cm /8″ Capacity – 4.75″ Jaw, 2,025 lb.
P60030: MAXI F 30 cm /12″ Capacity – 4.75″ Jaw, 2,025 lb.
P60040: MAXI F 40 cm /16″ Capacity – 4.75″ Jaw, 2,025 lb.
P60050: MAXI F 50 cm /20″ Capacity – 4.75″ Jaw, 2,025 lb.
P60060: MAXI F 60 cm /24″ Capacity – 4.75″ Jaw, 2,025 lb.

Why Buy the Piher® Maxipress F Clamp from TRK?

We run these clamps daily in our own Ohio fab shop. The F Clamp isn’t theory—it’s proven.

  • 2,025 lbs clamping power without distortion.
  • Double-thread piston = more torque, less effort.

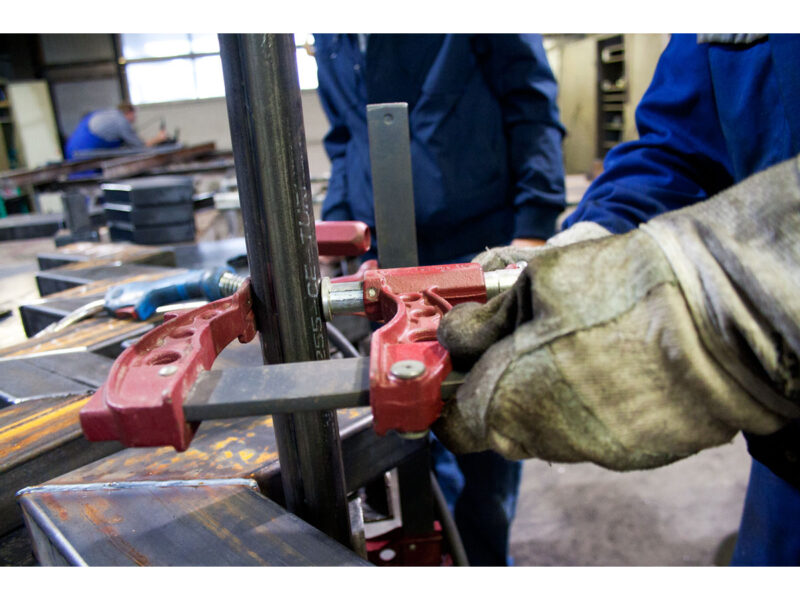

  • Curved jaws + “+” grooves grip pipes, edges, and odd shapes.
  • Backed by Piher’s lifetime warranty and TRK’s seal of approval.

The clamp that works as hard as you do.

Features Curved jaw heads which allow work around edges and protrusions.

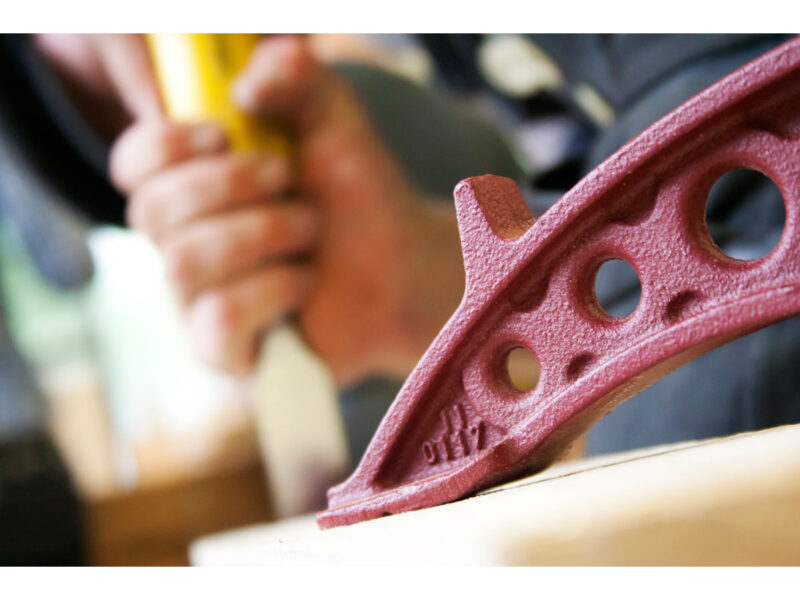

Epoxy paint coated cast iron jaws.
Positioning system to hold and prevent any free fall of the moving jaw.
Tempered steel Nonslip brake on moving jaw.
Grooved fixed jaw for optimum grip of tubes, profiles, etc.
Piston system with fully protected threads.
Double thread design multiplies both the advance and pressure capacity of the adjusting handle.
No twisting or distortion at all thanks to the piston system.

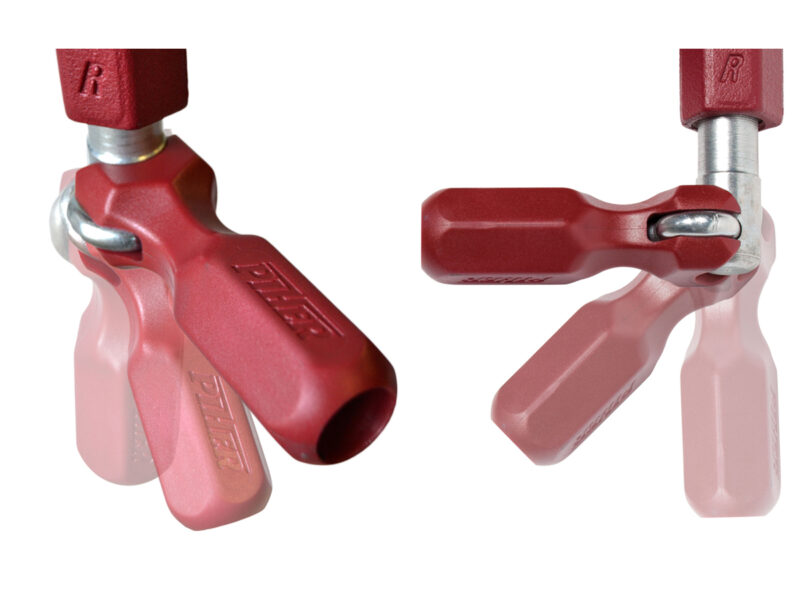

Reversible, removable adjusting handle.
Greasing hole to lubricate the adjusting screw.
Corrosion resistant hot rolled steel bar with anti-rust coating.
Limited lifetime guarantee.
Designed and manufactured in Spain.
